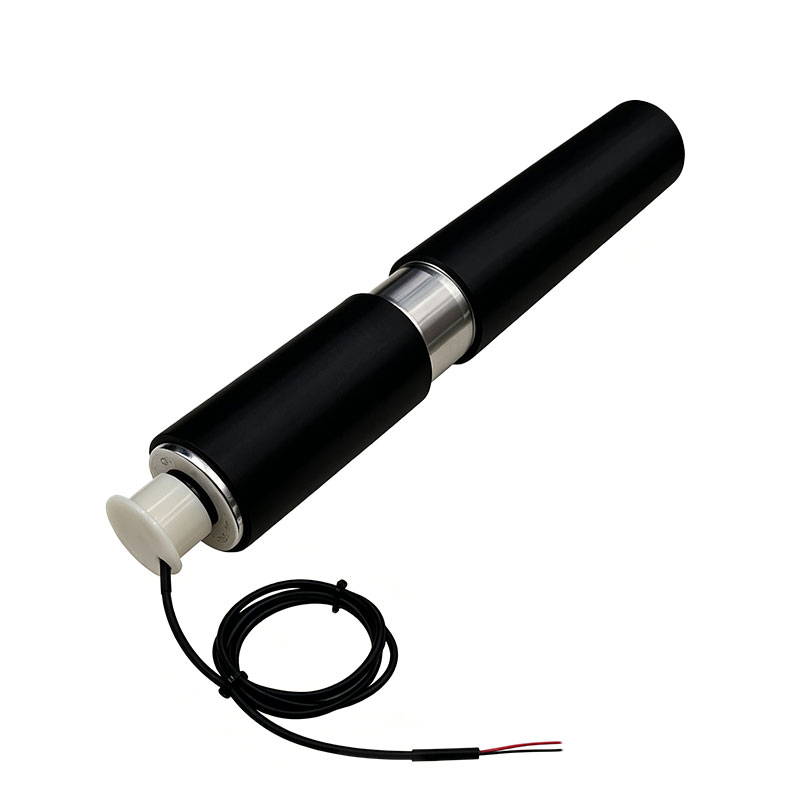

Custom Polyurethane Lagged Drum Motor Roller for Anti-Slip Belt Conveyor Drives

The AstraRoll Technical Advantage

Combining a self-contained motorized pulley with hot-cast polyurethane lagging requires exceptional engineering and thermal management:

Unstoppable Anti-Slip Traction: The custom PU lagging aggressively grips the underside of the conveyor belt. By machining Diamond or Chevron grooves into the PU, water, oil, and dust are actively channeled away from the contact surface, ensuring 100% torque transfer without belt slipping or tracking errors.

Hot-Cast Vulcanized Bonding: Cheaper lagging is applied by gluing pre-made rubber sheets to the steel drum, which rapidly peels off under heavy tension. AstraRoll utilizes a hot-cast liquid polyurethane process. The PU is poured directly over a chemically primed steel shell and heat-cured, creating an unbreakable molecular bond that will never delaminate.

Space-Saving Internal Drive: By eliminating external motors, chains, and gearboxes, the drum motor saves massive amounts of lateral factory floor space and removes all external moving pinch points, maximizing worker safety.

Integrated Thermal Dissipation: The internal motor components are submerged in a premium synthetic oil bath. This oil safely transfers internal heat to the steel shell, while the thick PU lagging is specifically formulated to withstand continuous heat transfer without degrading or softening.

Primary Applications

AstraRoll Custom PU Lagged Drum Motor Rollers are designed for high-tension, high-load continuous operations:

• Logistics & Parcels: Powering high-speed sorting belts, inclines, and telescoping conveyors where precise belt gripping is required for rapid start/stop indexing.
• Mining & Bulk Aggregates: Driving heavy rubber belts through dusty, abrasive environments where bare steel drums would instantly slip.
• Airport Baggage Handling: Reliable, high-traction drives for inclined check-in belts and carousel feed lines.
• Food Processing & Agriculture: (When paired with a Stainless Steel core and Food-Grade PU) conveying raw bulk foods through washing and sorting stations.

Key Specifications

Please note: Every AstraRoll PU Lagged Drum Motor is custom-manufactured based on your belt width, load capacity, and speed requirements.

Outer Diameter (O.D. with PU): Custom from 60mm up to 800mm+.
Face Length: Custom manufactured from 200mm up to 2,500mm+.
PU Hardness: 70A to 95A (Shore A) tailored to your belt material.
Power Output: 0.05 kW up to 30 kW+.
Voltage Options: 24V / 48V DC, 115V / 230V / 380V / 480V (Single or 3-Phase).
Ingress Protection: IP66 or IP67 (Dust-tight and water-resistant).

Why Choose AstraRoll?

1. In-House Manufacturing & Lagging

Many drum motor suppliers outsource the lagging process, leading to long lead times and poor quality control. AstraRoll designs the electric motor, machines the gears, and casts the polyurethane lagging entirely under one roof. This guarantees perfect concentricity, flawless bonding, and rapid delivery times for your custom OEM projects.

2. Turnkey VFD Compatibility

Modern automated conveyors require dynamic speed adjustments. Our AC and BLDC drum motors are engineered with premium insulation and are 100% compatible with Variable Frequency Drives (VFDs). Combined with the high-traction PU lagging, this allows you to rapidly accelerate, decelerate, and index heavy loads without the belt slipping out of alignment.

Frequently Asked Questions (FAQs)

Q: Should I choose Polyurethane (PU) lagging or standard Black NBR Rubber lagging?
A: Polyurethane (PU) is the superior choice for severe applications. It offers 3 to 5 times the abrasion resistance, higher load-bearing capacity, and excellent resistance to cuts and tearing compared to standard NBR rubber. Furthermore, PU is non-marking, ensuring it won't leave black carbon scuffs on the underside of your belt. NBR rubber is only recommended if you need an extremely low-cost solution for very light-duty applications.

Q: Can the PU lagging be repaired or replaced when it finally wears out?
A: Yes! A major advantage of a drum motor is its longevity. When the PU surface eventually wears smooth after years of heavy industrial use, do not throw the motor away. Ship the unit back to AstraRoll. We will strip the old urethane, cast a brand-new custom PU jacket, machine fresh anti-slip grooves, and return the motor to you in better-than-new condition at a fraction of the cost.

Q: Which groove pattern is best for my conveyor?
A: If you are conveying on a flat, dry factory floor, a Smooth Crowned PU surface is usually sufficient to keep the belt tracking straight. If you are operating in wet conditions (like agricultural washing) or dusty environments (like mining), you must choose Diamond or Chevron (V-Groove) patterns. These grooves physically push water and dirt out from under the belt, maintaining a high-friction grip.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
